Multi Touch

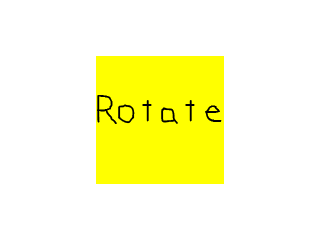

Multi Touch screenshot

Last Updated: Jan 10th, 2024

In this tutorial we'll be using SDL 2's built in functionality to handle multi touch gestures like pinch and rotate.
//Scene textures
LTexture gPinchCloseTexture;
LTexture gPinchOpenTexture;
LTexture gRotateTexture;
Like in the previous tutorial, we'll be using a set of textures to show which type of input is happening.
            //Main loop flag
            bool quit = false;

            //Event handler
            SDL_Event e;

            //Touch variables
            SDL_Point touchLocation = { gScreenRect.w / 2, gScreenRect.h / 2 };
            LTexture* currentTexture = &gPinchOpenTexture;
Also like the previous tutorial, we'll need to keep track of the touch location and the current texture to render.
                    //Multi touch gesture
                    else if( e.type == SDL_MULTIGESTURE )
                    {
                        //Rotation detected
                        if( fabs( e.mgesture.dTheta ) > 3.14 / 180.0 )
                        {
                            touchLocation.x = e.mgesture.x * gScreenRect.w;
                            touchLocation.y = e.mgesture.y * gScreenRect.h;
                            currentTexture = &gRotateTexture;
                        }
When a multi touch gesture happens a SDL_MultiGestureEvent gets generated. Here we check for rotations first by checking the angle on the gesture. The thing to remember is that the smallest rotation will get reported so if you pinch and rotate by a 1000th of a radian, it will show up in the gesture. Here we make sure the rotation is at least one degree before reporting it as a rotation.

If the rotation is big enough, we set the location of the gesture and set the texture.
                        //Pinch detected
                        else if( fabs( e.mgesture.dDist ) > 0.002 )
                        {
                            touchLocation.x = e.mgesture.x * gScreenRect.w;
                            touchLocation.y = e.mgesture.y * gScreenRect.h;

                            //Pinch open
                            if( e.mgesture.dDist > 0 )
                            {
                                currentTexture = &gPinchOpenTexture;
                            }
                            //Pinch close
                            else
                            {
                                currentTexture = &gPinchCloseTexture;
                            }
                        }
                    }
If the rotation wasn't big enough, we then check the distance of the pinch. Again remember that coordinates are normalized so a 10 pixel pinch on a 1920 resolution tablet will be reported at around 0.0052.

If the pinch is big enough, we set the gesture position and then check if the pinch was opening or closing.
                //Clear screen
                SDL_SetRenderDrawColor( gRenderer, 0xFF, 0xFF, 0xFF, 0xFF );
                SDL_RenderClear( gRenderer );

                //Render touch texture
                currentTexture->render( touchLocation.x - currentTexture->getWidth() / 2, touchLocation.y - currentTexture->getHeight() / 2 );

                //Update screen
                SDL_RenderPresent( gRenderer );
Once again like the previous tutorial, in the rendering we show the current gesture texture and the gesture position.
