Color Modulation

Color Modulation screenshot

Last Updated: Nov 26th, 2023

Color modulation allows you to alter the color of your rendered textures. Here we're going to modulate a texture using various colors.
//Texture wrapper class
class LTexture
        //Initializes variables

        //Deallocates memory

        //Loads image at specified path
        bool loadFromFile( std::string path );

        //Deallocates texture
        void free();

        //Set color modulation
        void setColor( Uint8 red, Uint8 green, Uint8 blue );

        //Renders texture at given point
        void render( int x, int y, SDL_Rect* clip = NULL );

        //Gets image dimensions
        int getWidth();
        int getHeight();

        //The actual hardware texture
        SDL_Texture* mTexture;

        //Image dimensions
        int mWidth;
        int mHeight;
We're adding a function to the texture wrapper class that will allow the texture modulation to be set. All it does is take in a red, green, and blue color components.
void LTexture::setColor( Uint8 red, Uint8 green, Uint8 blue )
    //Modulate texture
    SDL_SetTextureColorMod( mTexture, red, green, blue );
And setting texture modulation is as easy as making a call to SDL_SetTextureColorMod. You just pass in the texture you want to modulate and the color you want to modulate with.

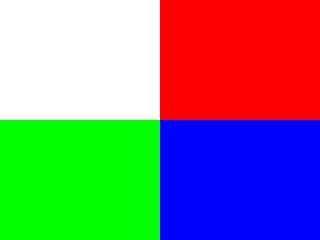

Now how does color modulation work? Let's say you have this texture:
full green

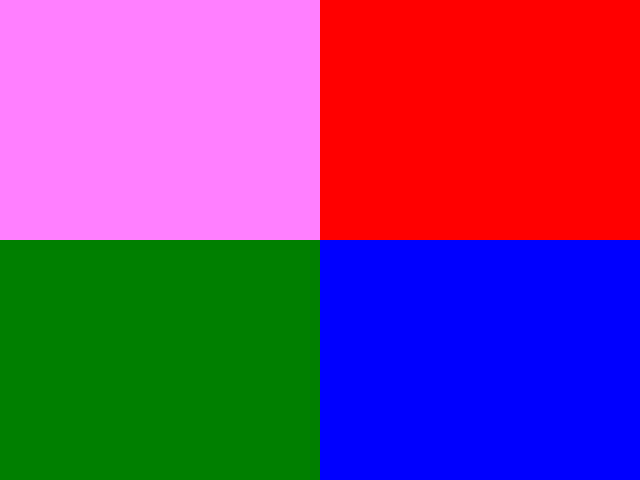

And you modulate it with red 255, green 128, and blue 255. You'll end up with this:
half green

You may have noticed that SDL_SetTextureColorMod accepts Uint8 as arguments for the color components. An Uint8 is just an integer that is Unsigned and 8bit. This means it goes from 0 to 255. 128 is about halfway between 0 and 255, so when you modulate green to 128 it halves the green component for any pixel on the texture.

The red and blue squares don't get affected because they have no green in them, but the green becomes half as bright and the white turns a light magenta (magenta is red 255, green 0, blue 255). Color modulation is just a way to multiply a color throughout the whole texture.
//The window we'll be rendering to
SDL_Window* gWindow = NULL;

//The window renderer
SDL_Renderer* gRenderer = NULL;

//Scene texture
LTexture gModulatedTexture;
Here is the texture we're going to modulate after loading it in our file loading function.
            //Main loop flag
            bool quit = false;

            //Event handler
            SDL_Event e;

            //Modulation components
            Uint8 r = 255;
            Uint8 g = 255;
            Uint8 b = 255;
Here we are right before the main loop. For this demo we're going to modulate the individual color components using key presses. To do that we'll need to keep track of the values for the color components.
            //While application is running
            while( !quit )
                //Handle events on queue
                while( SDL_PollEvent( &e ) != 0 )
                    //User requests quit
                    if( e.type == SDL_QUIT )
                        quit = true;
                    //On keypress change rgb values
                    else if( e.type == SDL_KEYDOWN )
                        switch( e.key.keysym.sym )
                            //Increase red
                            case SDLK_q:
                            r += 32;
                            //Increase green
                            case SDLK_w:
                            g += 32;
                            //Increase blue
                            case SDLK_e:
                            b += 32;
                            //Decrease red
                            case SDLK_a:
                            r -= 32;
                            //Decrease green
                            case SDLK_s:
                            g -= 32;
                            //Decrease blue
                            case SDLK_d:
                            b -= 32;
In our event loop we'll have the q, w, and e keys increase the red, green, and blue components and we'll have the a, s, and d key decrease the red, green, and blue components. They increase/decrease the components by 32 so it's noticable with every key press.
                //Clear screen
                SDL_SetRenderDrawColor( gRenderer, 0xFF, 0xFF, 0xFF, 0xFF );
                SDL_RenderClear( gRenderer );

                //Modulate and render texture
                gModulatedTexture.setColor( r, g, b );
                gModulatedTexture.render( 0, 0 );

                //Update screen
                SDL_RenderPresent( gRenderer );
And here we are setting the texture modulation and rendering the texture.
