Game Saves

Last Updated 3/28/10
Ever wanted to know how to save data from your game? Whether saving settings or progress in a game you need to know file input/output. This program will save the background type and the dot's offsets. So when we start the program up again the dot and background will be the same as when we closed the program.

Here's yet another incarnation of the motion tutorial to show you how to get input and output from a file to save/load game data.

A File Reading and Writing tutorial with SDL 2 is now available.
#include "SDL/SDL.h" #include "SDL/SDL_image.h" #include <string> #include <fstream>
You need to include the fstream header to read/write a file. It's a standard library and not part of SDL.
//The dot class Dot { private: //The X and Y offsets of the dot int x, y; //The velocity of the dot int xVel, yVel; public: //Initializes the variables Dot(); //Takes key presses and adjusts the dot's velocity void handle_input(); //Moves the dot void move(); //Shows the dot on the screen void show(); //Set the dot's x/y offsets void set_x( int X ); void set_y( int Y ); //Get the dot's x/y offsets int get_x(); int get_y(); };
Here's the Dot class yet again. The only real change here is that we added functions to get/set the x and y offsets.
bool load_files( Dot &thisDot, Uint32 &bg ) { //Load the dot image dot = load_image( "dot.png" ); //If there was a problem in loading the dot if( dot == NULL ) { return false; } //Open a file for reading std::ifstream load( "game_save" );
In the load_files() function after we load our image we create an ifstream object.

ifstream allows you to get input from a file stream. When you pass a file name to the constructor, it opens the file for reading.
//If the file loaded if( load != NULL ) { //The offset int offset; //The level name std::string level; //Set the x offset load >> offset; thisDot.set_x( offset ); //Set the y offset load >> offset; thisDot.set_y( offset );
When there's a problem in loading the file, the ifstream object will be NULL.

Here we check if the file loaded fine. If it loaded fine, we declare "offset" to retrieve the offsets and "level" which we'll use to determine how to set the background.

Then we get first integer from the file and set the x offset of the dot. Then we get another integer and use it to set the y offset. As you can see, we get integers with ifstreams the same way we would with cin. That's because they're both istreams (input streams).

The contents of the "game_save" file will be something like this:
0 0
White Level


Seeing as the file and what we enter in console apps are just characters it makes sense to treat them almost the same.
//If the x offset is invalid if( ( thisDot.get_x() < 0 ) || ( thisDot.get_x() > SCREEN_WIDTH - DOT_WIDTH ) ) { return false; } //If the y offset is invalid if( ( thisDot.get_y() < 0 ) || ( thisDot.get_y() > SCREEN_HEIGHT - DOT_HEIGHT ) ) { return false; }
We also have to check if the offsets from the file are valid considering the user can easily alter the file.
//Skip past the end of the line load.ignore(); //Get the next line getline( load, level ); //If an error occurred while trying to load data if( load.fail() == true ) { return false; }
Then we skip past the next character (which is a '\n') with the ignore() function. Then we get the next line and store it with the getline() function. getline() is a different from using >> in that it gets everything up until the end of the line.

For you guys still using Visual C++ 6.0 you'll have to std::getline().

Then we check if there was a problem in reading from the file. The fail() function will return true when there's a problem.
//If the level was white if( level == "White Level" ) { //Set the background color bg = SDL_MapRGB( screen->format, 0xFF, 0xFF, 0xFF ); } //If the level was red else if( level == "Red Level" ) { //Set the background color bg = SDL_MapRGB( screen->format, 0xFF, 0x00, 0x00 ); } //If the level was green else if( level == "Green Level" ) { //Set the background color bg = SDL_MapRGB( screen->format, 0x00, 0xFF, 0x00 ); } //If the level was blue else if( level == "Blue Level" ) { //Set the background color bg = SDL_MapRGB( screen->format, 0x00, 0x00, 0xFF ); }
Now that we have our level string, we set the background color accordingly.
//Close the file load.close(); } //If everything loaded fine return true; }
After we're done reading from the file we close it.
void clean_up( Dot &thisDot, Uint32 &bg ) { //Free the surface SDL_FreeSurface( dot ); //Open a file for writing std::ofstream save( "game_save" ); //Write offsets to the file save << thisDot.get_x(); save << " "; save << thisDot.get_y(); save << "\n";
In the clean_up() function, we create a ofstream to write to a file. ofstream allows you to output to a file stream.

Since ifstream was similar to cin, it makes sense that ofstream is similar to cout.

In this piece of code we write the dot's offsets to a file.
//The RGB values from the background Uint8 r, g, b; //Get RGB values from the background color SDL_GetRGB( bg, screen->format, &r, &g, &b );
Then we get the individual R, G and B values from the background using SDL_GetRGB().
//If the background was white if( ( r == 0xFF ) && ( g == 0xFF ) && ( b == 0xFF ) ) { //Write level type to the file save << "White Level"; } //If the background was red else if( r == 0xFF ) { //Write level type to the file save << "Red Level"; } //If the background was green else if( g == 0xFF ) { //Write level type to the file save << "Green Level"; } //If the background was blue else if( b == 0xFF ) { //Write level type to the file save << "Blue Level"; }
After that, we write the level type.
//Close the file save.close(); //Quit SDL SDL_Quit(); }
Lastly, we close the file.
//Quit flag bool quit = false; //Initialize if( init() == false ) { return 1; } //The dot Dot myDot; //The background color Uint32 background = SDL_MapRGB( screen->format, 0xFF, 0xFF, 0xFF ); //The frame rate regulator Timer fps; //Load the files if( load_files( myDot, background ) == false ) { return 1; }
Here you see how we use our load_files() function.
//While the user hasn't quit while( quit == false ) { //Start the frame timer fps.start(); //While there's events to handle while( SDL_PollEvent( &event ) ) { //Handle events for the dot myDot.handle_input(); //If the user has pressed at key if( event.type == SDL_KEYDOWN ) { //Change background according to key press switch( event.key.keysym.sym ) { case SDLK_1: background = SDL_MapRGB( screen->format, 0xFF, 0xFF, 0xFF ); break; case SDLK_2: background = SDL_MapRGB( screen->format, 0xFF, 0x00, 0x00 ); break; case SDLK_3: background = SDL_MapRGB( screen->format, 0x00, 0xFF, 0x00 ); break; case SDLK_4: background = SDL_MapRGB( screen->format, 0x00, 0x00, 0xFF ); break; } } //If the user has Xed out the window if( event.type == SDL_QUIT ) { //Quit the program quit = true; } } //Move the dot myDot.move(); //Fill the background SDL_FillRect( screen, &screen->clip_rect, background ); //Show the dot on the screen myDot.show(); //Update the screen if( SDL_Flip( screen ) == -1 ) { return 1; } //Cap the frame rate if( fps.get_ticks() < 1000 / FRAMES_PER_SECOND ) { SDL_Delay( ( 1000 / FRAMES_PER_SECOND ) - fps.get_ticks() ); } }

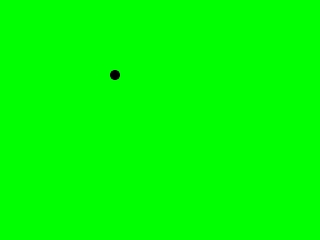

Here's the main loop. To change the background, you press 1,2,3 or 4. When you start the program up again the dot and the background will be the same as you left it.
//Clean up and save clean_up( myDot, background ); }
Lastly, we call our clean_up() function to clean and save the data.
Download the media and source code for this tutorial here.
