Timer Callbacks

Last Updated 2/8/15

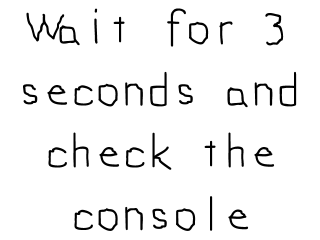

We've covered timers with SDL before, but there are also timer callback which execute a function after a given amount of time. In this tutorial we'll make a simple program that prints to the console after a set time.
//Our test callback function Uint32 callback( Uint32 interval, void* param );
When creating a call back function, know that they have to be declared a certain way. You can't just create any type of function and use it as a callback.

The call back function needs to have a 32 bit integer as its first argument, a void pointer as its second argument, and it has to return a 32 bit integer.
Uint32 callback( Uint32 interval, void* param ) { //Print callback message printf( "Callback called back with message: %s\n", (char*)param ); return 0; }
Here is our simple call back function which prints a message to the console after a given amount of time. The interval argument isn't used here but is typically used for timer call backs that need to repeat themselves.

Since void pointers can point to anything, this function is going to take in a string and print it to the console.
//Initialize SDL if (SDL_Init( SDL_INIT_VIDEO | SDL_INIT_TIMER ) < 0 ) { printf( "SDL could not initialize! SDL Error: %s\n", SDL_GetError() ); success = false; }
Do make sure to initialize with SDL_INIT_TIMER to use timer callbacks.
//Set callback SDL_TimerID timerID = SDL_AddTimer( 3 * 1000, callback, "3 seconds waited!" ); //While application is running while( !quit ) { //Handle events on queue while( SDL_PollEvent( &e ) != 0 ) { //User requests quit if( e.type == SDL_QUIT ) { quit = true; } } //Clear screen SDL_SetRenderDrawColor( gRenderer, 0xFF, 0xFF, 0xFF, 0xFF ); SDL_RenderClear( gRenderer ); //Render splash gSplashTexture.render( 0, 0 ); //Update screen SDL_RenderPresent( gRenderer ); } //Remove timer in case the call back was not called SDL_RemoveTimer( timerID );
We kick off our timer callback using SDL_AddTimer. The first argument is how long the callback will take which in this case is set to 3000 milliseconds or 3 seconds. The second argument is the callback function and the last argument is the void data pointer we're sending it.

This application will kick off the call back and then run the main loop. While the main loop is running the callback may spit out the message to the console. In case the callback doesn't happen before the main loop ends, we remove the callback timer using SDL_RemoveTimer. Careful, the timer call back is asynchronous which means it can happen while we're doing something else. Don't have your call back mess with data while your main thread is messing with that same piece of data.
Download the media and source code for this tutorial here.
