What is AI?

Last Updated 11/19/11
Artificial Intelligence is a complex subject. There are volumes upon volumes written the subject and they can't all be covered in a single article. What this article is here to do is give you a starting point and give you some basics so you can implement some AI in your game.
Artificial Intelligence is about modeling a problem in such a way that a computer can complete a task.

What does that mean? Let's jump right in with an example.

Tic Tac Toe is a common beginner game to make. Most people who make tic tac toe have little problem making the grid show, handling user input, and checking for wins. A lot of the time though, they'll have trouble making the AI for the game.

What you could do is give the computer opponent some sort of pattern to follow.
//If the space is empty if( grid[ TOP_LEFT ] == GRID_EMPTY ) { //Fill the space with the CPU's character grid[ TOP_LEFT ] = AIChar; } else if( grid[ TOP_CENTER ] == GRID_EMPTY ) { //Fill the space with the CPU's character grid[ TOP_CENTER ] = AIChar; } else if( grid[ TOP_RIGHT ] == GRID_EMPTY ) { //Fill the space with the CPU's character grid[ TOP_RIGHT ] = AIChar; } else if( grid[ MID_LEFT ] == GRID_EMPTY ) { //Fill the space with the CPU's character grid[ MID_LEFT ] = AIChar; } else if( grid[ MID_CENTER ] == GRID_EMPTY ) { //Fill the space with the CPU's character grid[ MID_CENTER ] = AIChar; } else if( grid[ MID_RIGHT ] == GRID_EMPTY ) { //Fill the space with the CPU's character grid[ MID_RIGHT ] = AIChar; } else if( grid[ BOTTOM_LEFT ] == GRID_EMPTY ) { //Fill the space with the CPU's character grid[ BOTTOM_LEFT ] = AIChar; } else if( grid[ BOTTOM_CENTER ] == GRID_EMPTY ) { //Fill the space with the CPU's character grid[ BOTTOM_CENTER ] = AIChar; } else if( grid[ BOTTOM_RIGHT ] == GRID_EMPTY ) { //Fill the space with the CPU's character grid[ BOTTOM_RIGHT ] = AIChar; }
Here the computer just makes a (pretty dumb) set sequence of moves. The problem with this is that the player will quickly pick up on this pattern and easily defeat the computer. Well how do we give the computer some Artificial Intelligence to make it somewhat smart?

Artificial Intelligence in the most basic sense is a set of instructions the computer has to handle a situation. In this case, the computer has to win a game of tic tac toe against a human player. Now the question is how do you make computer make the move?

Well the most basic type of AI you can make for tic tac toe is an opponent that makes moves at random. Let's take a look of what the AI of an opponent that makes moves at random would look like.
//While a move hasn't been made while( moveMade == false ) { //Pick a random space int space = rand() % GRID_SPACES; //If the space is empty if( grid[ space ] == GRID_EMPTY ) { //Fill the space with the CPU's character grid[ space ] = AIChar; moveMade = true; } }
First, this chunk of code selects a space at random. Then we have to check if it's a empty space. If the move is a valid one, we fill the space with the computer's character (X or O). If the move is invalid, we keep picking a new space until we find an empty one.

However, for artificial intelligence, this isn't all that intelligent. Real AI has some sort of logic that understands the situation it has deal with. Since the goal of the game is to get 3 in a row, we need to give the computer the ability to complete rows.

In tic tac toe there are 8 rows you can make:


For each row there are 3 ways to complete it:
//Complete the top row if( ( grid[ TOP_LEFT ] == GRID_EMPTY ) && ( grid[ TOP_CENTER ] == AIChar ) && ( grid[ TOP_RIGHT ] == AIChar ) ) { //Fill the space with the CPU's character grid[ TOP_LEFT ] = AIChar; moveMade = true; } else if( ( grid[ TOP_LEFT ] == AIChar ) && ( grid[ TOP_CENTER ] == GRID_EMPTY ) && ( grid[ TOP_RIGHT ] == AIChar ) ) { //Fill the space with the CPU's character grid[ TOP_CENTER ] = AIChar; moveMade = true; } else if( ( grid[ TOP_LEFT ] == AIChar ) && ( grid[ TOP_CENTER ] == AIChar ) && ( grid[ TOP_RIGHT ] == GRID_EMPTY ) ) { //Fill the space with the CPU's character grid[ TOP_RIGHT ] = AIChar; moveMade = true; }
The code to complete the top row would look something like this. The computer now knows how to complete the top row to win. Then you would do the same for the other 7 rows. If you can do the code for one row, you can do it for any of them.

Now that the computer has some basic offense, we should give it some defensive strategy. We'll do this by giving it the ability to block the user's rows.

Much like completing a row, there are 3 ways to block a row:
//Block the top row if( ( grid[ TOP_LEFT ] == GRID_EMPTY ) && ( grid[ TOP_CENTER ] == playerChar ) && ( grid[ TOP_RIGHT ] == playerChar ) ) { //Fill the space with the CPU's character grid[ TOP_LEFT ] = AIChar; moveMade = true; } else if( ( grid[ TOP_LEFT ] == playerChar ) && ( grid[ TOP_CENTER ] == GRID_EMPTY ) && ( grid[ TOP_RIGHT ] == playerChar ) ) { //Fill the space with the CPU's character grid[ TOP_CENTER ] = AIChar; moveMade = true; } else if( ( grid[ TOP_LEFT ] == playerChar ) && ( grid[ TOP_CENTER ] == playerChar ) && ( grid[ TOP_RIGHT ] == GRID_EMPTY ) ) { //Fill the space with the CPU's character grid[ TOP_RIGHT ] = AIChar; moveMade = true; }
So it only makes sense that the code to block a row looks almost exactly the same as the code to complete a row. In fact you could with the proper tweaks make a function that both completes and blocks row depending on the arguments.
void CPUOpponent::make_move() { block_row(); complete_row(); rand_move(); }
Here's what an AI function for a tic tac toe game might look like. It's simple AI that first tries to block a user victory, then tries complete any rows. If there's nothing to complete or block, it just makes a random move.

However, there is something seriously wrong with how this works. You don't see it? Well let's see how it would run.

Say the user just did something like this:

This is a sure victory for the computer right?

This is what the AI is going to do:



Like with game loops, the AI has to do things in the right order to work properly. Blocking has higher priority, so even if the computer can win in this move, it's going to try to block the user first. This means the complete_row() function should go before the block_row() function. It doesn't matter how nice your AI algorthims look, if they don't happen in the right order they aren't going to work. So be careful how you prioritize your AI actions.

Now that your AI has basic offensive and defensive abilities, you probably want to put some higher level strategy. We'll do this by adding in some traps. The best way to explain a trap is by example.

Let's say the player does this:


If the computer makes this trap:


No matter what the player does, the computer will win:

//Set trap if( ( grid[ BOTTOM_LEFT ] == AIChar ) && ( grid[ MID_CENTER ] == AIChar ) && ( grid[ TOP_LEFT ] == GRID_EMPTY ) && ( grid[ BOTTOM_CENTER ] == GRID_EMPTY ) && ( grid[ BOTTOM_RIGHT ] == GRID_EMPTY ) ) { //Fill the space with the CPU's character grid[ BOTTOM_RIGHT ] = AIChar; moveMade = true; }
Here's what the code of this trap would look like. The AI checks that the right spaces are empty and that the right spaces have the AI's character and then it sets the trap.

How many traps are there? Each trap requires two rows that share a space.

In this example it was these two:


This means there are is a set of traps for each unique pair of rows. For each of those pairs, there must be 3 spaces with the AI's character, one being the space they share.

Here are all the traps for this pair of rows:


For each trap there 3 ways to complete it:


So now you know how to make every single possible trap. Blocking a trap is almost exactly like completing a trap. As with blocking rows you simply detect a possible trap by the player, then you put the AI's character in the place that would complete the player's trap.
void CPUOpponent::make_move() { complete_row(); block_row(); set_trap(); block_trap(); rand_move(); }
This is what an AI function with all the actions we talked about would look like. Again notice how the actions are prioritized. We have the move fundamental actions of completing and blocking rows go first. Then we have higher level strategies of setting and blocking traps. Lastly, we have a function to make a move at random so if there isn't any important actions to do, the AI will not just sit there and do nothing.

If you skipped past the most of the article because tic tac toe is boring, resume reading here.
This may seem boring, but all these fundamental AI concepts apply to many different types of games. First we talked about giving the computer some patterns to follow. This can work in situations where AI isn't important like shoot 'em ups or generic enemies in a platformer.

Then we covered making sure that the AI makes a valid move. In an RPG for example, you can have an enemy cast a magic spell against the player, but you have to design the AI so it can't use the spell if it doesn't have enough magic points or if it isn't at a high enough level to use it.

After that, we talked about giving the AI the basic action it needs to win and defend itself against the player. In a shooter, you should have the AI shoot at an enemy when they see one and pick up a nearby health pack when they're low on health. You should also have the AI properly prioritize these actions. If there's a health pack nearby and the AI encountered an enemy, it should be able to judge whether its primary concern is going for the health or finishing the enemy.

Then there's higher level strategy like in a war simulation. You can make the fighters have different formations to maximize the damage they can do as a team. When you have different levels of strategy you have to properly layer them. Let's say you have a set of fighters trying to surround an enemy, but some of those fighters are being attacked by other enemies. Those units should know to try to stay alive because they're no good in surrounding an enemy if they're dead.

When we covered making the AI for all this, we had to think about what were the possible situations the AI could run into. So when you make your AI, you have to think "what moves can be used by the player", "what obstacles could I run into?", "what weapons can I use?", etc, etc.

Lastly we talked about implementing some sort of idle fail safe. In the tic tac toe game, if there's nothing to set up or block, we have it pick a move at random. This sort of concept applies to other games, too. At the start of a round in a game, since there's nothing to shoot at, no items to pick up, or no enemies to surround, the computer is just going to stand there.

When coming up with AI, it's a waste of time coming up with an action for every single possible specific situation. So if the AI has nothing to do, you can have it pick an action or strategy at random and have it follow through with that. You can have it take the high way, the low way, the side way, or you can have it pick a location and camp it. It's much better than having it do nothing.

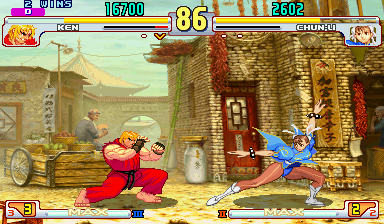

Obviously most video games are more complicated than tic tac toe. The only moves a player can make is putting a character in an empty space. What about all the other games that have objects moving all over the place and doing all their various actions? Let's jump right into an example with Street Fighter 3: 3rd Strike.

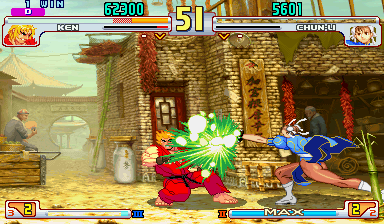

When player gets in close enough, we'll have the AI punch them:
void CPUOpponent::make_move() { if( opponent->is_in_punch_range() ) { punch(); }
Here's some over simplified psuedo AI code that hits the opponent if they're nearby. Any of you that played the game know there's a problem with this code.

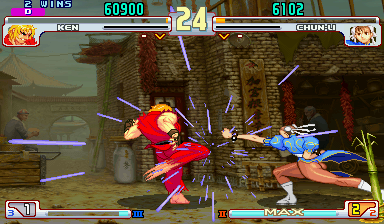

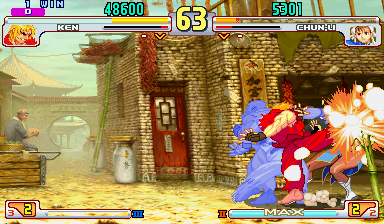

If the AI tries to punch the opponent while they're doing a super, they're going to get hit:

How do we take into account all the actions the opponent can do? We can do it with a state machine.
switch( opponent->state() ) { case STATE_STANDING: dash_toward_opponent(); break; case STATE_JUMPING: jump_and_attack(); break; case STATE_SWEEPING: punch(); break; case STATE_SUPER: block(); break; case STATE_PUNCHING: parry(); break; case STATE_KICKING: do_this(); break; case STATE_WALKING: do_that(); break; }
Here's some more over simplified psuedo AI code, but this time it uses a state machine. Now the AI will know to block when the opponent is doing a super even if they're within punch range.

State based AI has the computer take action depending what the opponent is doing, so it can take a counter measure. State based AI applies to just about any game: So when you design you AI, think about the various actions the player can take and have a set of actions for each of those situations.
Another thing to watch out for when designing AI is making the AI "too smart". Computers can make thousand upon thousands of calculations per second. They can in an instant calculate the precise angle to aim at the player to kill them instantly with a head shot. The reaction time of a computer is a tiny fraction of a second so it will notice you doing a move before your action is rendered to the screen. It can calculate the range of a collision box down to a pixel. It can also instantly find out the location of anything in the game. If you make your AI too hard, people won't want to play your game.

Let's do some pong AI for example.
//Set paddle offset paddle.y = ball.get_y();
With this code, the paddle will always line up with the ball and it will never miss. This means the AI will never lose.

In order to give your AI a more human like feel, you have to give it some inaccuracy.
//Try to hit the ball if( paddle.y < ball.get_y() ) { paddle.y += speed; } else if( paddle.y > ball.get_y() ) { paddle.y -= speed; }
Now this AI is more playable. Instead of always lining up with the ball, it moves toward it at a varying speed. This mean it could not get to the ball on time or it could over shoot the ball. Now a human has a chance of beating AI.

A human can't instantly react to something, so your AI should wait a reasonable amount of time before reacting. A human can't instantly find out what "player.x" and "player.y" are so the AI should have to look for the opponent. So when you design your AI make sure to ask yourself "Can a human do this?".

This brings me to my next topic of varying difficulty. It's a common feature for video games to have multiple difficulty settings. This is so people new to the game don't get frustrated because it's too hard and people who already have experience with the game don't get bored because it's become too easy. It's also good game design to have the difficulty of the game to steadily increase as you progress so it doesn't become repetitive.
//Set paddle speed speed = level * 10; //Try to hit the ball if( paddle.y < ball.get_y() ) { paddle.y += speed; } else if( paddle.y > ball.get_y() ) { paddle.y -= speed; }
Here's the pong AI once again. Now as the difficulty level increases, the paddle moves faster so it becomes harder to defeat.

The key to having variable difficulty is to have different actions depending on the difficulty setting. The harder the difficulty the more aggressive, skilled, and intelligent the AI should be. For the easier difficulties, the AI should just use the most basic actions, and maybe you could lower it's ability to aim or react.
void CPUOpponent::make_move() { if( difficulty >= EASY ) { complete_row(); block_row(); } if( difficulty >= NORMAL ) { set_trap(); } if( difficulty == HARD ) { block_trap(); } rand_move(); }
Here's another example of variable AI with tic tac toe.

On the easy difficulty the AI will just do the minimum of completing and blocking rows. On normal it will try to trap you when it can. On hard it will also try to block your traps. So as the difficulty increases, the AI uses better tactics to defeat the player.

We've only scratched the surface of what AI is. I tried to cover the basic concepts that can be applied to most games. There's so much more that goes into AI like knowledge of geometry, linear algebra, statistics, path finding algorithms, constraint satisfaction problems, and even psychology. Hopefully now you at least have enough to get started.
If you have any suggestions to improve this article, It would be great if you contacted me so I can improve this article.
